The basic concept of Virtual Machines or VM is to operate one or more computers within the same computers where all other operating systems can work fine and be able to process all the functionalities like a computer (azure.Microsoft, 2022). Each operating system in a virtual system can behave like a separate window and perform functions independently. The host machine is the physical computer machine within which the guest computers are installed. One or more guests can function as a single host computer independently with proper configuration. VMware workstation is being used here in the host computer and for the guest computer,Debian and Windows 7 are being installed. Several tasks are performed to complete the deliverables of the task (Tao et al., 2019). IP address checking is there to verify whether both operating systems are on the same network or not. After determining the system, the ping test will be done. After a successful ping test, folders and files will be shared within two operating systems.

B. Management Report

a. Overview of the Operating Systems

An operating system or OS is the software that creates a bridge between the hardware part and the software part of the computer to get all the functionalities done (Jived et al., 2018). The OS acts as an interface between them and provides connectivity. All the functionalities such as file management, storage and memory allocation related decisions, connectivity, and other processes are being managed by the Operating system. In this case, two guest operating systems are installed in a single host Virtual Machine that is a VMware workstation such as Debian and Windows 7. For each case, a separate discussion is being made.

● Debian- The project of Debian is started in the year 1993, which was first introduced as an all-free software and the developer introduced Debian as a coherent software based on the distribution process of the Linux kernel (Ubuntu, 2022).GNU philosophy is the main foundation in this case where varieties of activities are managed and delivered in a proper manner. Here "Debian Social Contract" is being used to segment all the commitments with the Free Software Community. In addition to this, Debian Free Software Guidelines are there which will provide clear statements for the project and all the related criteria will be fulfilled for operating this software in a basic manner. Debian Policy Manual is there to check the quality of the software and all the requirements of the software will be delivered.

● Windows 7- In the year 2009, Microsoft introduced this operating system. The sixth generation ofWindows Vista is followed in this case for operating this system. In order to control all the functionalities, a Graphical User Interface or GUI is being used and the system can be operated with the help of a mouse and a keyboard. In this operating system, touch screens are being introduced where users can manage all the functionalities by only touching (Ivanovet al., 2018). Several versions of Windows 7 are available, the user can choose as per their requirement and budget. The versions are Windows 7 Ultimate, Windows 7 Professional and Windows 7 Home Premium.

b. Overview of network protocols

The network protocol is a set of rules that set the connectivity between various devices that are located under the same network. Connections between these devices are being made in this case and files are being transferred (AlAmri & Abdullah, 2018). In the network protocol, numerous packets are being transferred and broken into small processes that helps to fulfil tasks on a small scale. This will help to control the large task in the large network. Several protocols are there which will help in determining various aspect of the network security after transferring the data from the source address to destination address. This will help to protect the file confidentiality and mitigate vulnerabilities. Here in order to make the system secure, FTP or File Transfer Protocol is used which is best for transferring files between one system to another. This protocol encourage the computer which is available remotely and make sure the content of the file is secured and hassle free. Therefore, the transfer of data is becoming more efficient and reliable. Transferring file form one device to one another is a simple process however sometime the process cause several problems where both the system can have different conversion of file transfer. Then different types of representing protocol is used. In this case, two type of connection is used where one is used for transferring the data and other is for controlling the connection. Therefore FTP is the best one in order to maintain the security and confidentiality. Several advantages are there in applying the FTP such as it will provide speed, efficiency in to the system. In addition to this it will help in developing the back and forth movement which will increase the productivity and sent the information to the source server.

c. Overview of file and folder sharing method

Files and folders are being shared in this case. Here, first, the folder is created in the host computer, and files are attached with it. Then in the guest computer, the path of that created folder is being selected and files are shared. The path will be selected by clicking on the "Shareable folder option". After that, the respective processes are being followed to access the folders and files from the guest computer and a proper communication process is being established.

C. Report

a. Screenshot of the configuration

Figure 2.1: Installing Debian in VMware workstation

The above figure shows the installation process of Debian in VMware virtual machine workstation. Debian is a type of operating system that has been installed in this virtual workstation.

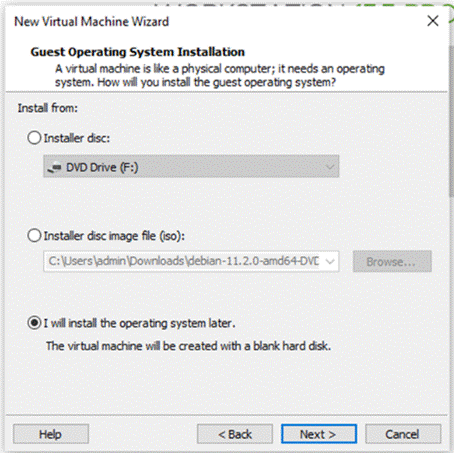

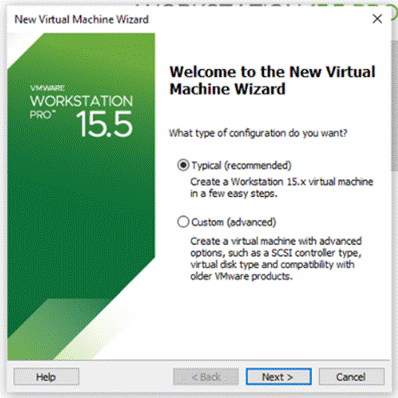

Figure 2.2: Selection process

The above figure shows the details process of selection. In this stage a typical process has been selected to complete the installation process.

Figure 2.3: Drive selection

The above figure has been shows the derive selection process of debian in virtual machine. In this part the virtual machine is created with a clank hard disk.

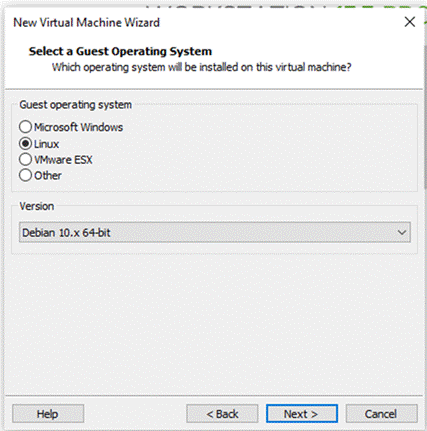

Figure 2.4: Operating system selection (Linux)

Here, the Linux operating system is being selected for installing Debian. In the above figure, Linux operating system has been chosen in the debian installation process.

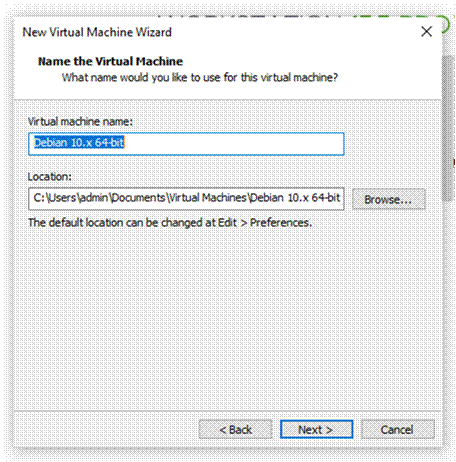

Figure 2.5: Path selection process

This above figure shows the path selection process of the debian. In this process the name and path have been selected for the virtual machine platform.

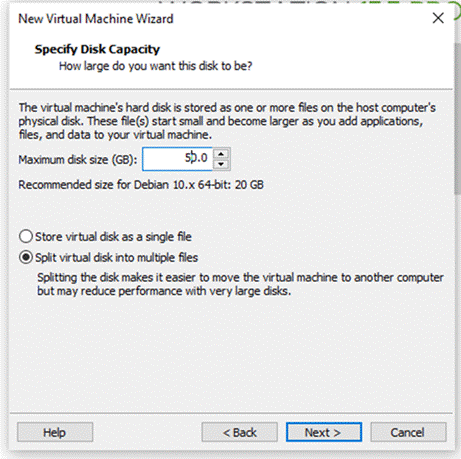

Figure 2.6: Hard Disk capacity

Hard disk is capacity has been showed in the above mentioned figure. The capacity of disk is 50 GB in this process.

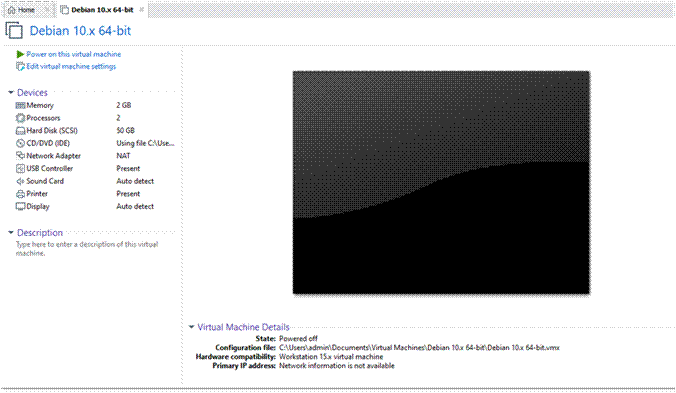

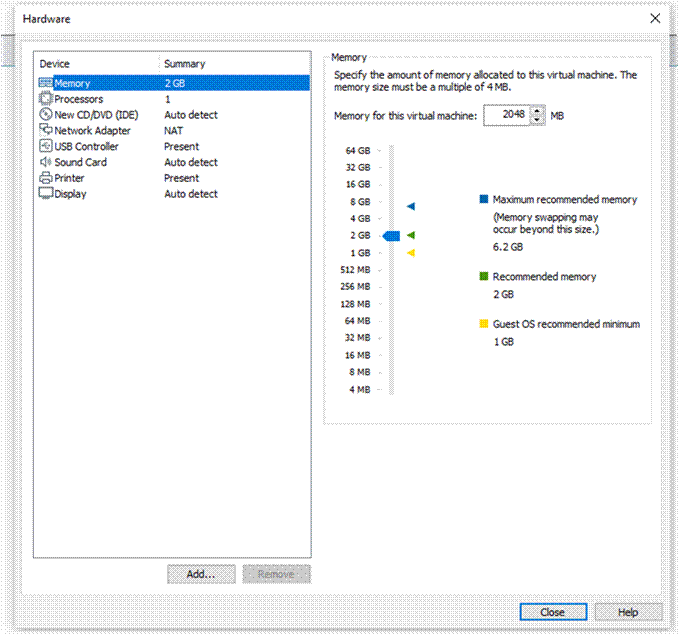

Figure 2.7: Configuration of the Virtual Machine

This is the configuration details that is required for installing Debian. The above figure shows the configuration process of the debian operating system. This process has been done through a IP generation.

Figure 2.8: Installing Debian part 1

The part 1 installation process has been described in the above mention figure. The virtual machine details have been showed the details of the debian operating system in this virtual machine platform.

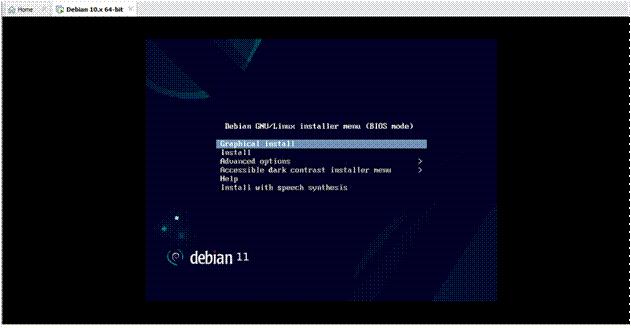

Figure 2.9: Installing Debian part 2

The part 2 installation process has been showed in the above mention figure where the graphical installation has been done.

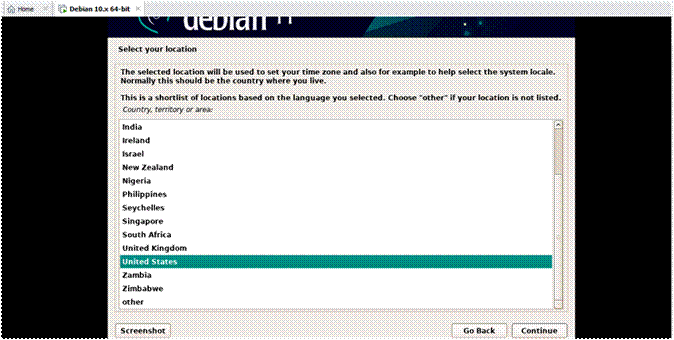

Figure 2.10: Installing Debian part 3

The part 3 installation of debian operating system has been done on this figure. In this part the location has been selected.

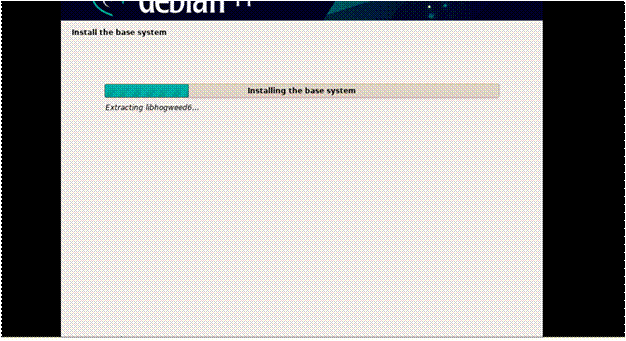

Figure 2.11: Installing Debian part 4

The part 4 installation has been described in the above mentioned figure where all base system has been installed on the VMware virtual workstation.

Figure 2.12: Debian User selection

Debian users selection process has been described in the above figure. In this process the user can enter this operating system.

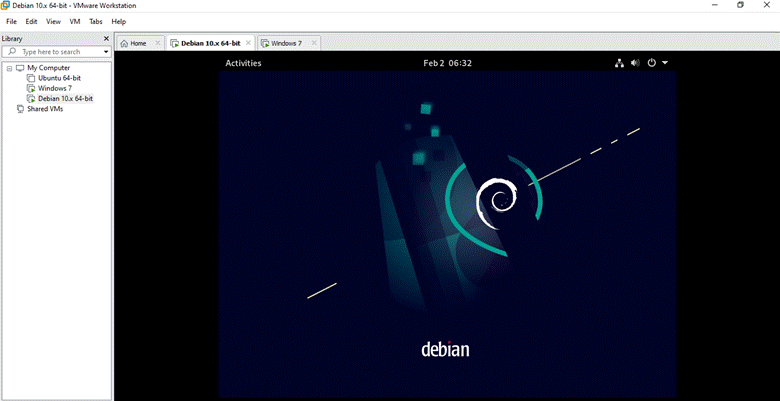

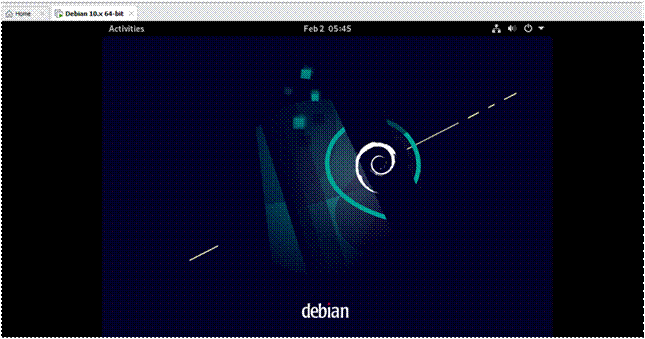

Figure 2.13: Home screen of Debian operating system

Debian operating system is installed and this is the home screen of this operating system. After the successful installation of debian operating system the home screen of this operating system has been display on this above figure.

Figure 2.14: Installing windows 7

Installation process of windows 7 has been described in the above mention figure. The windows 7 operating system has been also installed in this virtual machine workstation to access multiple computers at a time.

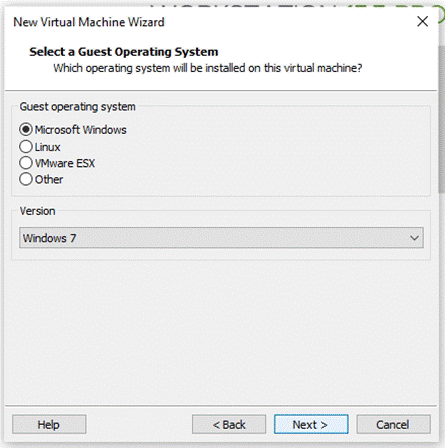

Figure 2.15: Choosing Microsoft windows as operating system

Microsoft Windows is being selected in this process for installing Windows 7. Here Microsoft window has been chosen as an operating system. Here this window acts as a guest operating system of the virtual machine platform.

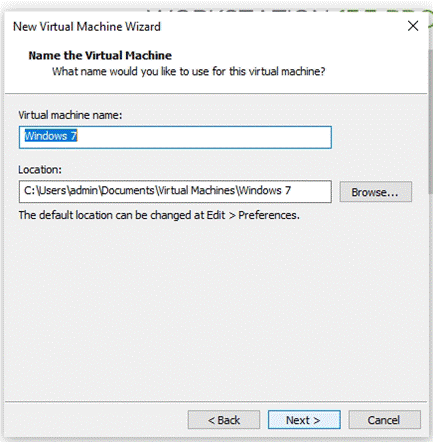

Figure 2.16: Installation process part 1

Here the path is being selected for the installation process. The name and path of the operating system has been done on the above mention figure. This can help to access the operating system on this platform.

Figure 2.17: Installation process part 2

Part 2 installation processes has been done in this above mention figure through name and path setting in this virtual machine workstation.

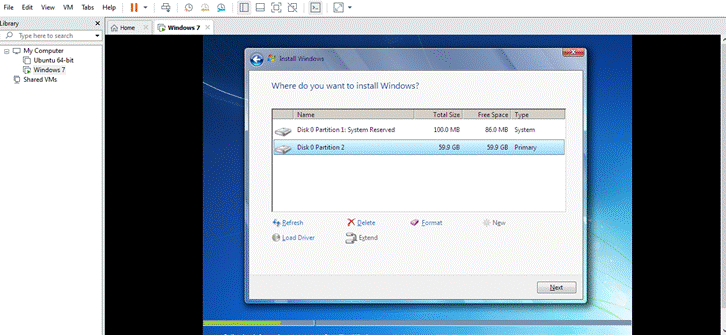

Figure 2.18: Installation process part 3

Hard disk partition is being done here for the installation process. This can help to know where the window will be installed. This a vital step in this installation process on windows operating system.

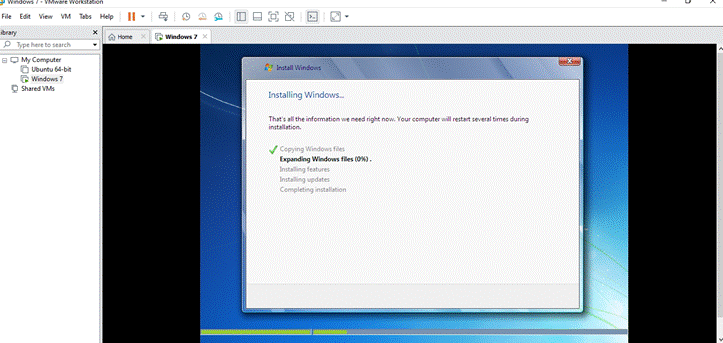

Figure 2.19: Installation process part 4

Part 4 installation process has been done by copying windows file in the virtual machine workstation. This process can allow te users to use the window operating system on this virtual platform.

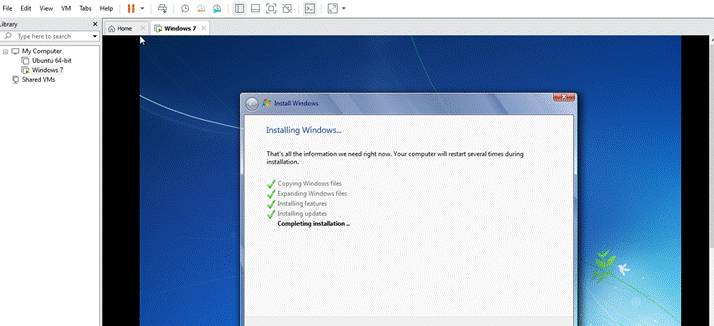

Figure 2.20: Installation process part 5

The completion of file transfer has been done in this above mention figure. This process can help to install the window based operating system on this virtual machine.

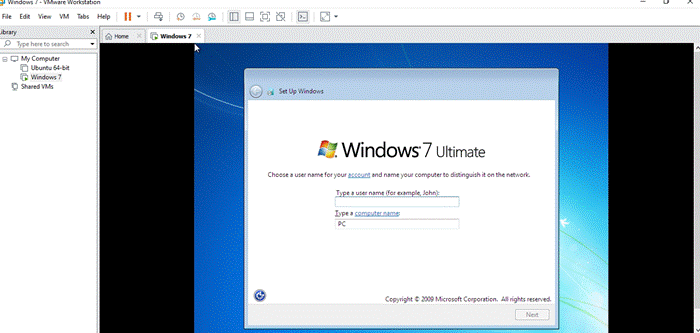

Figure 2.21: Installation process part 6

Here part 6 installation process has been described. Here the users need to type the users name and password to access this operating system.

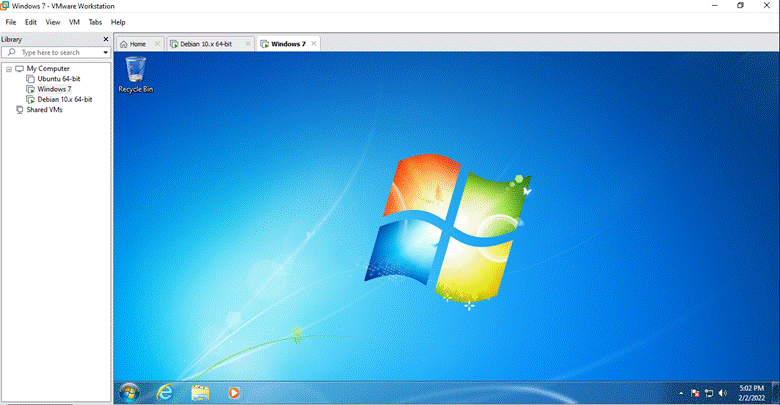

Figure 2.22: Installation process part 7

The above figure shows that Windows 7 is installed successfully. After successful installation of window 7 operating system in this virtual machine this above mention screen has been displayed on the VMware workstation.

b. Create 2 Virtual Machine in VMware (1 Debian and 1 Windows 7)

Figure 2.23: Debian with Windows 7 in VMware

The above figure shows the debian and windows 7 both operating systems has been worked on this VMware virtual machine platform.

Figure 2.24: Windows 7 with Debian in VMware

The above mention figure can describe the windows 7 operation system with the debian operating system on VMware workstation.

c. Put the 2 VM in the same network

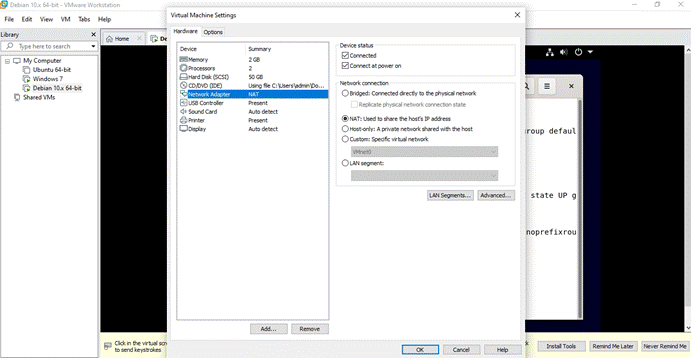

Figure 2.25: Network for Debian

The above figure has been described the network setting process of debian on virtual machine platform. This process has been done through networking process.

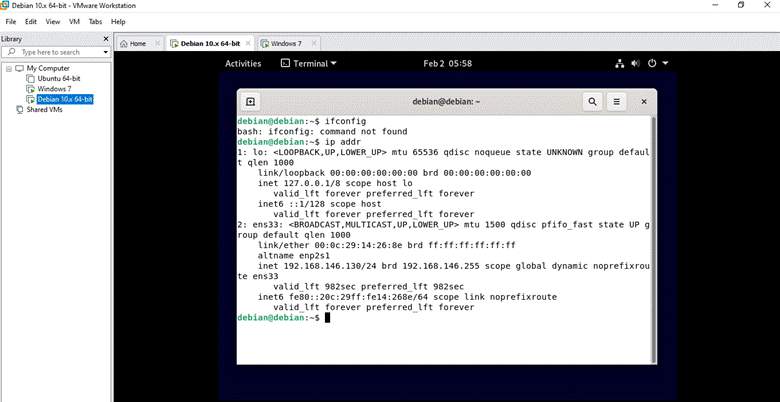

Figure 2.26: IP Address of Debian (192.168.146.130)

This above mention figure describes the IP setting process on the operating system on this virtual workstation. The IP address here is 192.168.146.130.

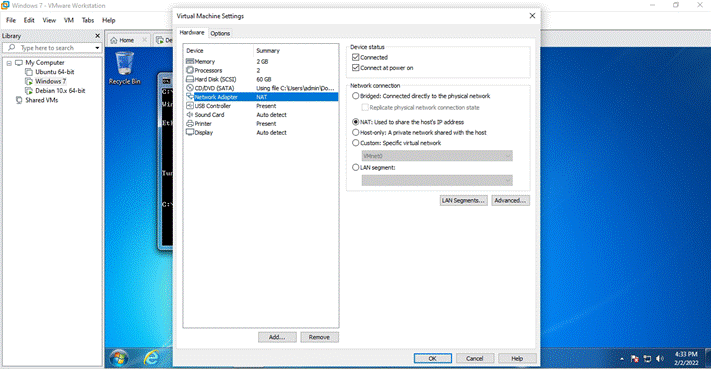

Figure 2.27: Network for Windows 7

The network setting of window operating system has been done on this above mention figure. The single option has been chosen to set this network in virtual platform.

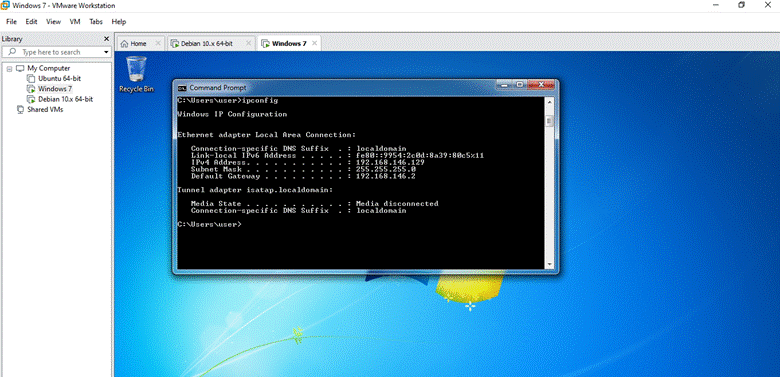

Figure 2.28: IP Address of Windows 7 (192.168.146.129)

IP address of windows operating system has been generated in this above mentioned figure. The IP address is 192.168.146.129.

d. Do a ping test between the 2 VM

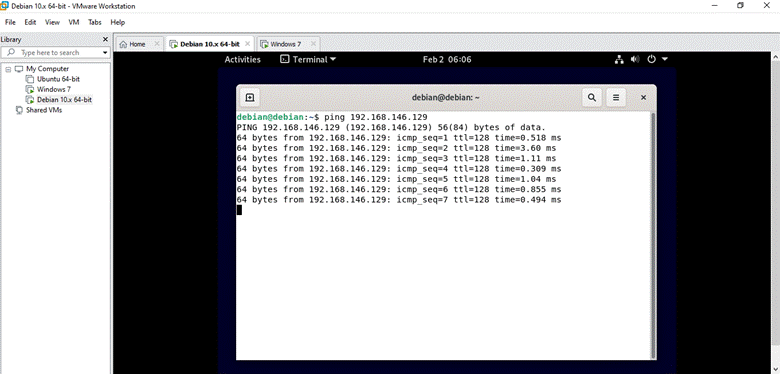

Figure 2.29: Ping test for Debian

Pinging test has been done on this above figure where all the connection of the network has been tested. This pinging test has been done for debian operating system.

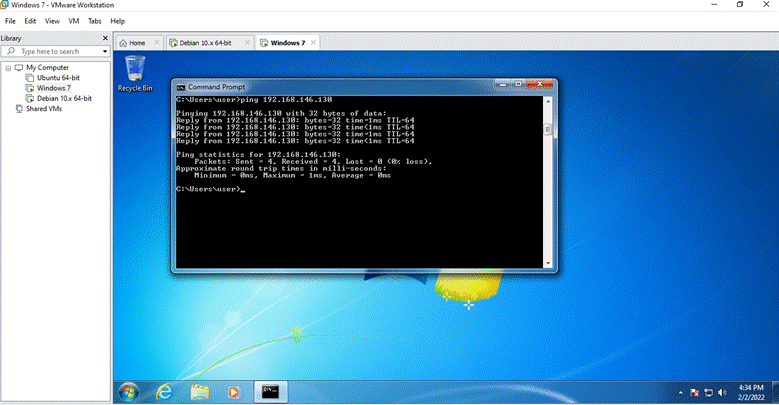

Figure 2.30: Ping test for Windows 7

Pinging test has been done on this above figure where all the connection of the network has been tested. This pinging test has been done for windows 7 operating system

e. Share a folder between the 2 VM

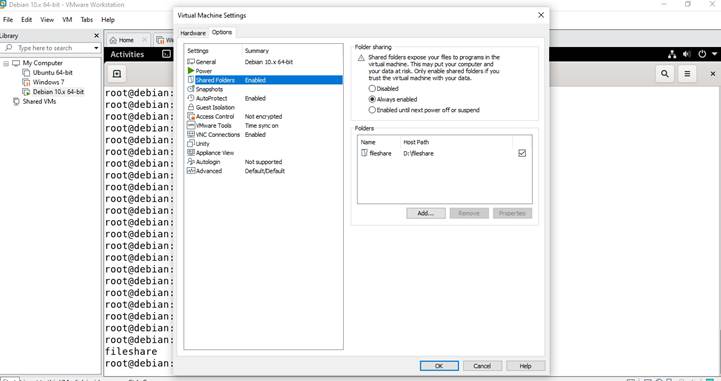

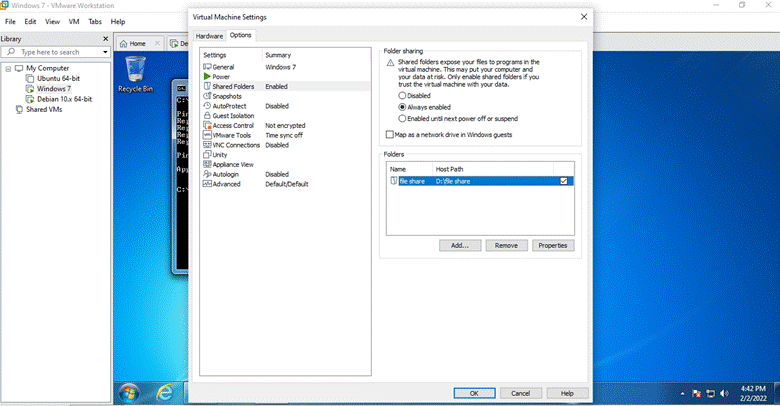

Figure 2.31: Path set

This path setting process has been described in this above mention figure where VMware path setting has been done. This process can helps to access this virtual platform.

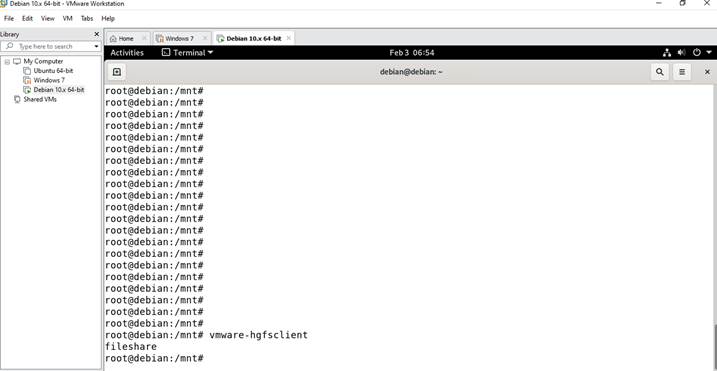

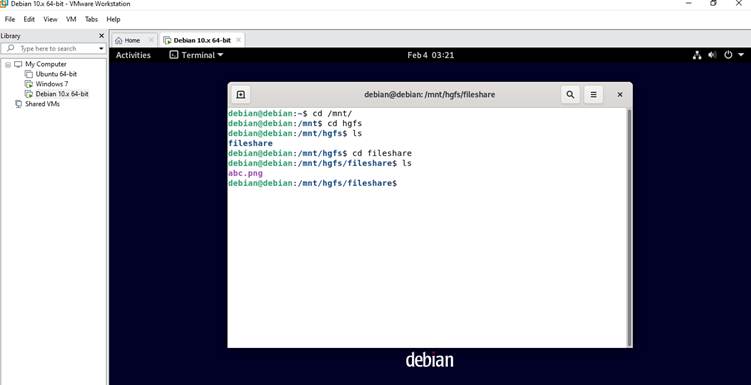

Figure 2.32: Shared Folder in terminal

The above figure shows the file transfer process from terminal to terminal in this VMware workstation. This process has been done through folder transfer process.

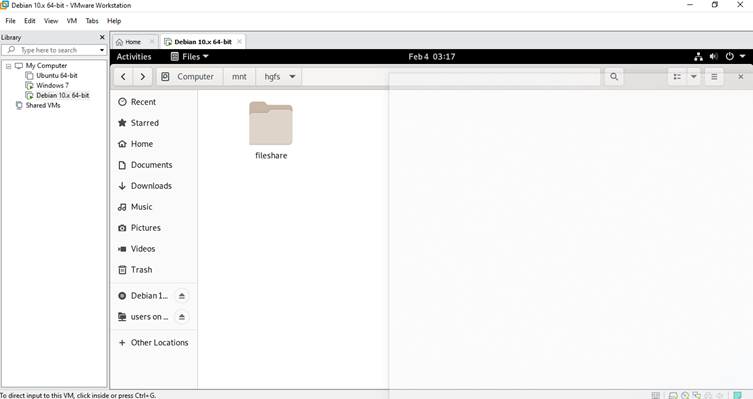

Figure 2.33: Shared folder inDebian location

This above figure shows the shared folder that has been transferred from terminal to terminal. This sharing process has been done through a networking process.

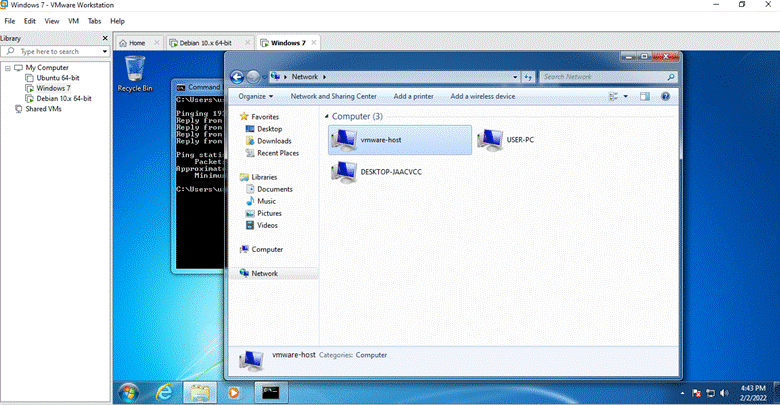

Figure 2.34: Folder share for Windows 7 part 1

This above figure shows the shared folder that has been transferred from terminal to terminal. This sharing process has been done through a networking process. This process has been done for windows operating system.

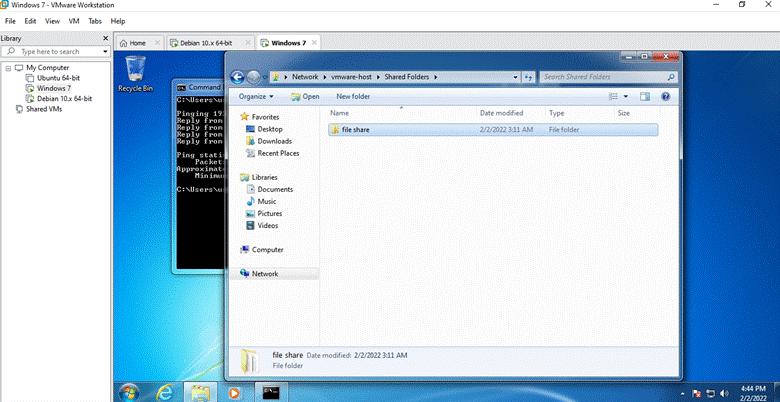

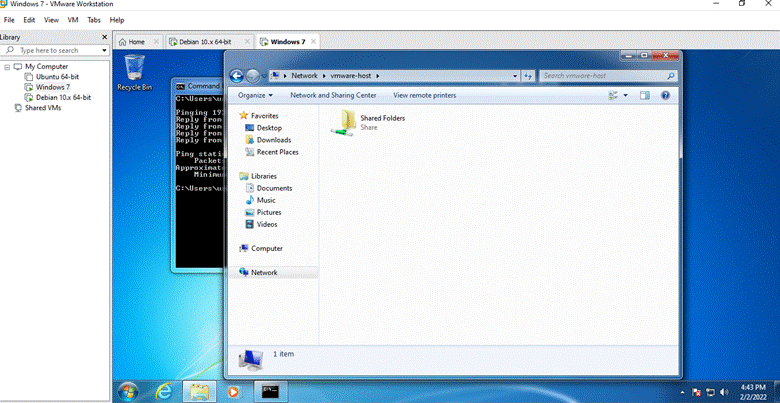

Figure 2.35: Folder share for Windows 7 part 2

This above figure shows the folders that have been showed in this virtual machine operating system.

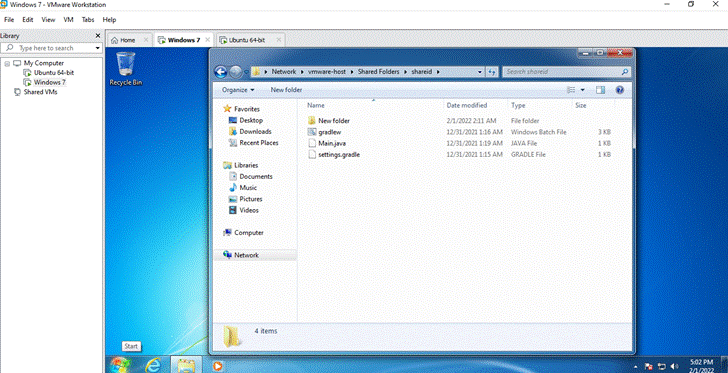

Figure 2.36: Folder share for Windows 7 part 3

This above figure shows the folders that have been showed in this virtual machine operating system. This figure contains the folder name that has been shared here.

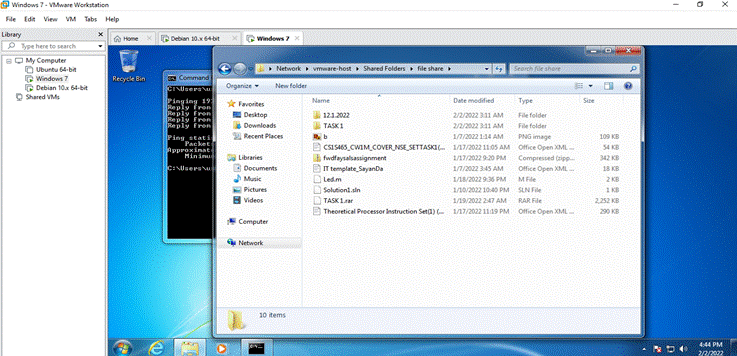

Figure 2.37: Folder share for Windows 7 part 4

The above figure shows the details of the file that are present in the folder that is shared in this virtual machine platform.

f. Test sharing a file between the 2 VM

Figure 2.38: Path setting for files sharing

The path setting for file sharing has been done in this above figure that can help to give away to share a folder that contain a lot of file from terminal to terminal.

Figure 2.39: File sharing through Terminal

The above figure shows the terminal to terminal folder sharing in debian window based operating system. in this process a lot of file has been shared through this virtual based platform.

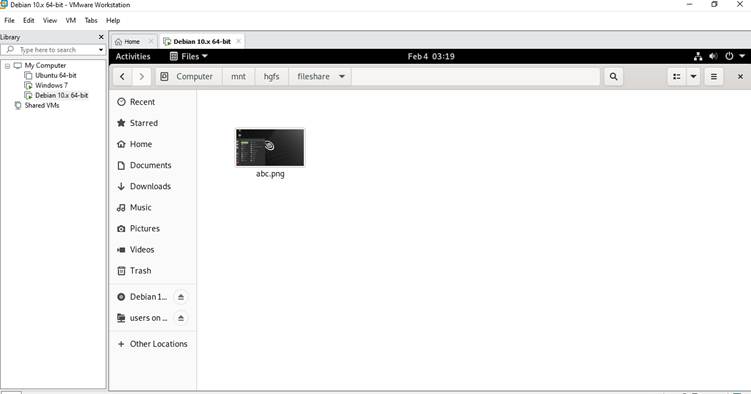

Figure 2.40: File sharing from Location

Here the file sharing location has been displayed on this above mentioned figure. The figure contain abc.png file that is located in the particular area of the virtual machine platform.

Figure 2.41: File share for Windows 7

The above figure shoes the details of sharing process of folders on windows 7 platform. This process a lot of file has been shared through this virtual machine platform.

D. Sign off Form

NAME OF THE PROJECT:
PROJECT MANAGER NAME:
START DATE OF THE PROJECT:
COMPLETION DATE OF THE PROJECT:
DURATION OF THE PROJECT:
SPONSOR (IF ANY)
GOAL OF THE PROJECT:
DELIVERABLES OF THE PROJECT:
CLIENT REMARKS:	CLIENT REMARKS:
( BY SIGNING THIS DOCUMENT, I ACKNOWLEDGE THAT I HAVE DELIVERED ALL THE STATED DELIVERABLES)	( BY SIGNING THIS DOCUMENT, I ACKNOWLEDGE THAT I HAVE DELIVERED ALL THE STATED DELIVERABLES)
PROJECT MANAGER- NAME: SIGNATURE: DATE:	PROJECT MANAGER- NAME: SIGNATURE: DATE:

Sign Off Form

E. Reference

Ubuntu, 2022.Accessed on 02.02.2022. From https://help.ubuntu.com/lts/installation-guide/s390x/ch01s02.html

azure.microsoft, 2022.Accessed on 03.02.2022.https://azure.microsoft.com/en-us/overview/what-is-a-virtual-machine/#overview

Tao, Z., Xia, Q., Hao, Z., Li, C., Ma, L., Yi, S., & Li, Q. (2019).A survey of virtual machine management in edge computing. Proceedings of the IEEE, 107(8), 1482-1499.

Javed, F., Afzal, M. K., Sharif, M., & Kim, B. S. (2018). Internet of Things (IoT) operating systems support, networking technologies, applications, and challenges: A comparative review. IEEE Communications Surveys & Tutorials, 20(3), 2062-2100.

Ivanov, V., Reznik, A., &Succi, G. (2018). Comparing the reliability of software systems: A case study on mobile operatin

AlAmri, A., & Abdullah, M. (2018). Cross layer energy location aware routing protocol (XELARP) for wireless multimedia sensor networks WMSNs. Int J EngTechnol, 7(4), 3346-3353.

Li, Y., Li, R., Li, X., Liu, L., Zhu, J., & Li, D. (2021). Effects of different aerobic exercise training on glycemia in patients with type 2 diabetes: A protocol for systematic review and meta analysis. Medicine, 100(18).

Appendix: Installation summary table

Site Name	Debian and Microsoft online website
Site Location	www.Ubuntu.com, www.debian.org, www.microsoft.com
Installation Date	1st February
Summary of Existing Network Infrastructure	No existing network was present
Summary of Client Requirements	Here, the client requested to run two OS in a single virtual machine. For task 2, it is Debian and Windows 7.
Server Operating System and Version	Windows 7 64 bit Debian 10.*64-bit
Server technical Specifications	2GB memory, 2 processor, hard disk 50 GB
Virtual Server Software to be installed and version	Virtual machine 15.5 PRO
Licensing Requirements and Summary	Followed the respective companys licensing policy
Virtual Server software Specifications	Virtual machine 15.5 PRO
Client Workstation Specifications	2GB memory, 2 processor, hard disk 50 GB
Virtual Machine Client Software to be installed and Version	None
Source for Software (Purchase/ download locations)	Online Company website
